PT30001–20 kVA @ PF 1.0
PT3000 Series Rack/Tower Online UPS (1–20 kVA)
Data-center-grade online UPS with unity power factor, touch LCD and rack/tower installation — from 1 kVA edge racks to 20 kVA server rows.
Power Rating
1–20 kVA @ PF 1.0
Topology
Online double conversion
Efficiency
up to 96% (online) / 99% (ECO)
Input
110–300 VAC
Output
220/230/240 VAC
Backup
external battery, configurable
Full Specifications
Overview
Series
PT1K-i to PT20KS
Power Rating
1–20 kVA at unity power factor (1–20 kW)
Topology
Online double conversion (VFI)
Installation
19" rack (2U–3U) or tower, convertible
Output Waveform
Pure sine wave
Standards
IEC 62040, IP20
Input
Voltage Range
110–300 VAC (1–3 kVA); 100–275 VAC (6–10 kVA); 100–300 VAC single phase / 173–520 VAC three phase (15–20 kVA)
Frequency Range
40–70 Hz
Input Power Factor
≥ 0.99
Current Distortion (THDi)
< 3–5%
Output
Nominal Voltage
220 VAC default; 200/208/220/230/240 VAC selectable
Voltage Regulation
±1%
Frequency (Battery Mode)
50/60 ±0.1 Hz
Voltage Distortion (THDv)
≤ 1%
Crest Factor
3:1
Overload Capability
125% for 10 min
Efficiency (Online Mode)
91–96% by model
Efficiency (ECO Mode)
96–99% by model
Battery
Battery Voltage
36–192 VDC (up to ±240 VDC on 15–20 kVA)
Internal Battery
7 Ah×3 to 9 Ah×6 (standard models); external battery for KS models
Charge Current
1.5 A to 12 A adjustable by model
Charge Temperature Compensation
Yes
EBM Support

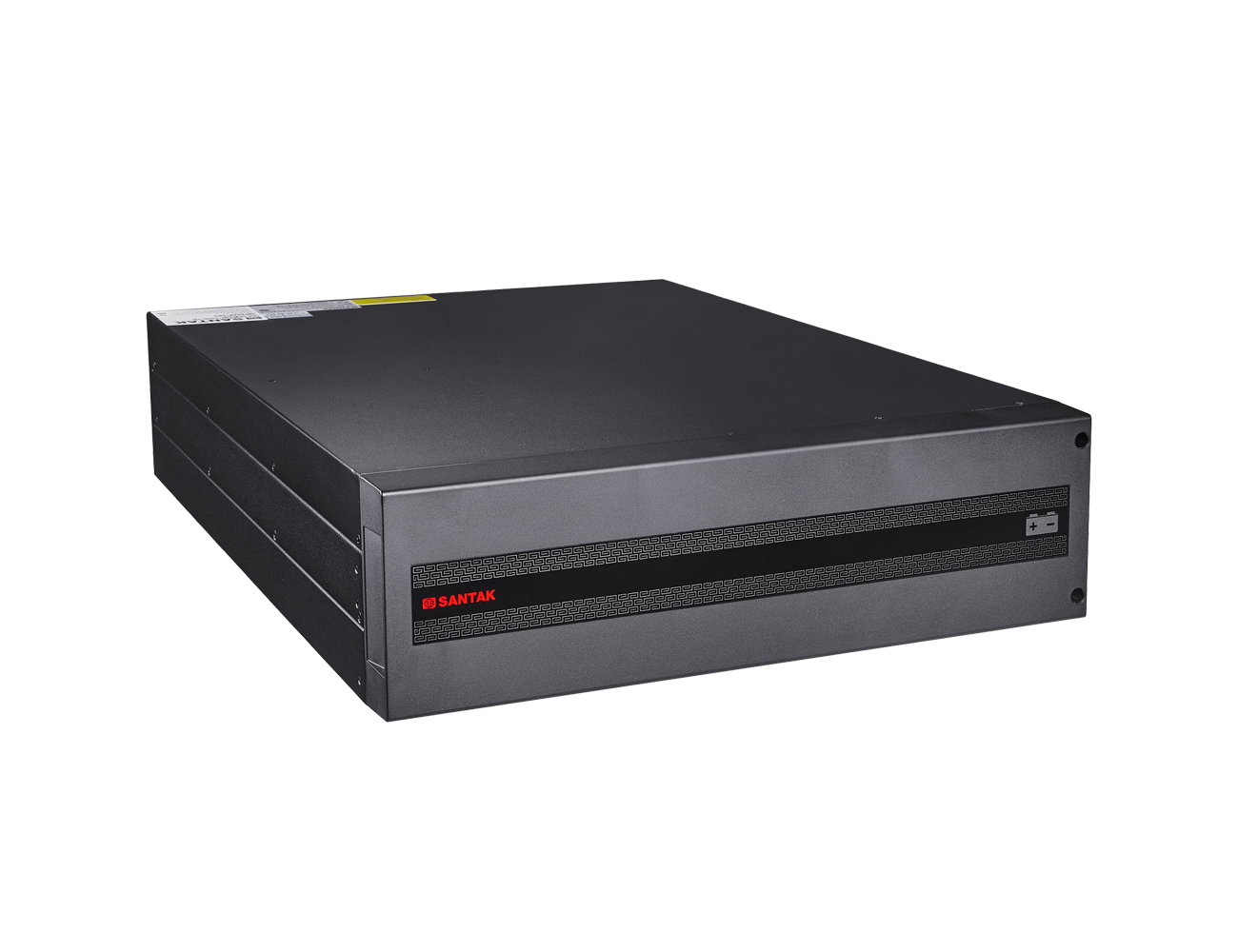

PTB9032-i, PTB9062-i, PTB7161, PTB9161, PTB9321 external battery modules
Physical
Dimensions (W×D×H)
438×445×85.5 mm (2U) to 438×589×129 mm (3U)
Net Weight
8–26.2 kg (UPS); EBM 22.6–51.8 kg
Display

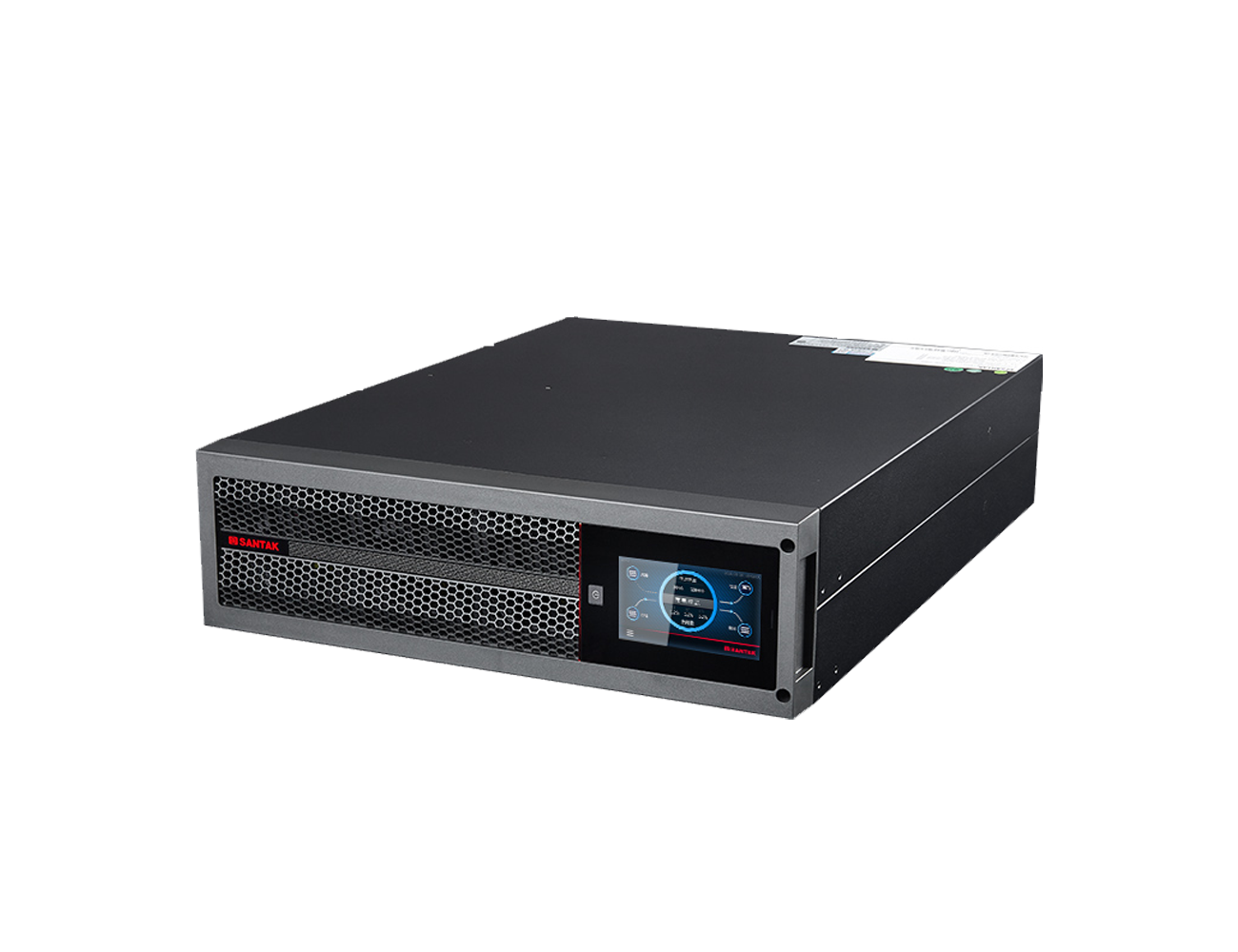

Touch LCD, auto-rotates with installation direction
Communication

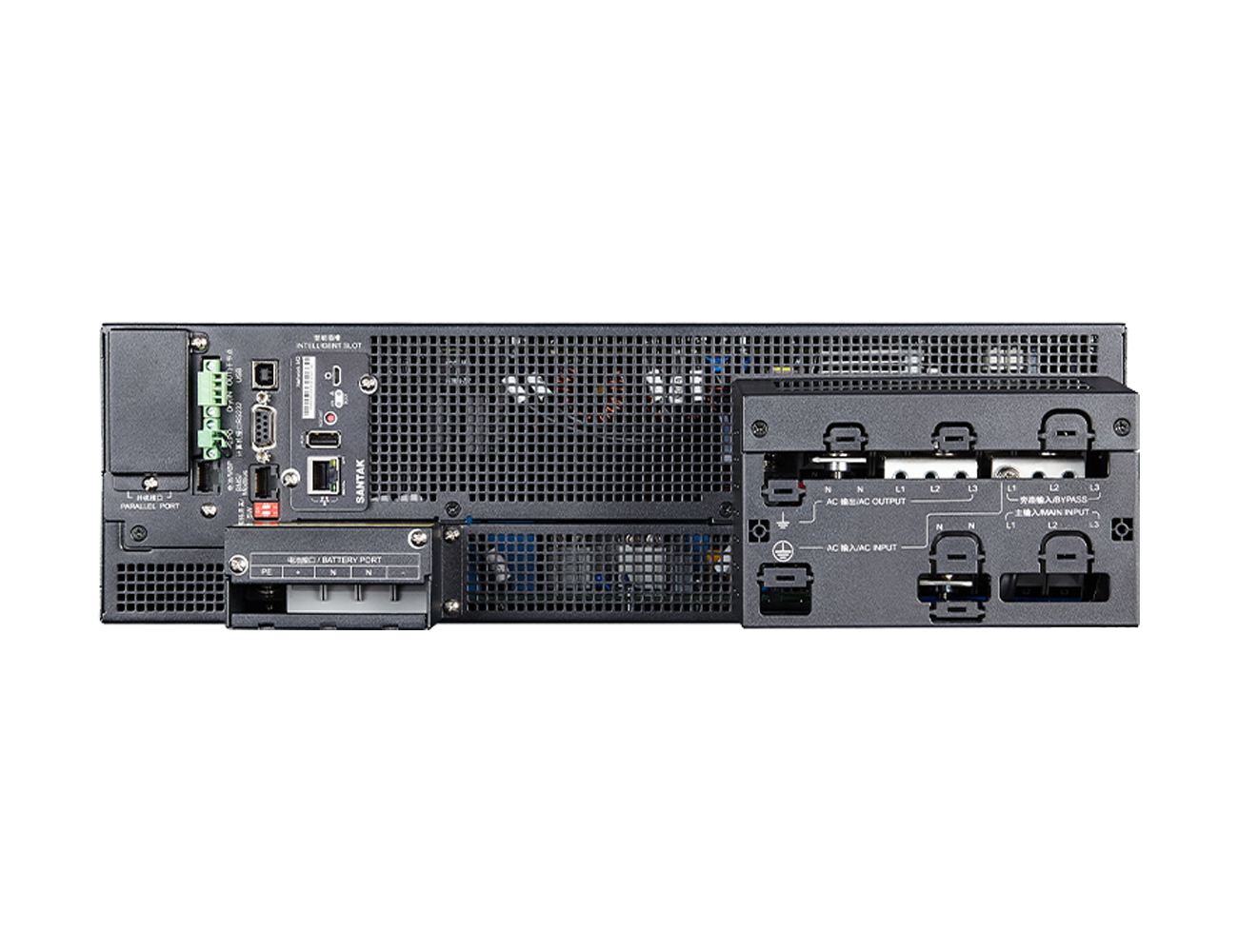

USB / RS232 / EPO / slot card / dry contact
Software
Winpower monitoring
Environment
Operating Temperature
0–50 °C (derating above 40 °C)
Humidity
0–95%
Altitude
0–3000 m (derating above 1000 m)
Protection Class
IP20
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
