Prime

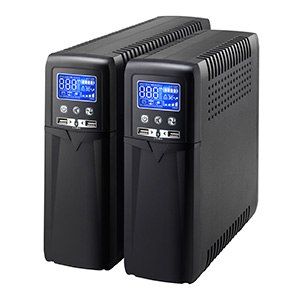

Prime 550VA–1.5kVA Line-Interactive UPS
Pure sine wave output for critical devices
Voltage
110/120 VAC or 220/230/240 VAC
Transfer Time
6ms typical, 10ms max
Every unit factory-tested: full-load aging + 40-point QC before shipping.
Full Specifications
MODEL
Prime 550
CAPACITY
550 VA / 330 W
Voltage Range
81～132VAC / 86～142VAC or 162～270VAC / 170～270VAC / 176～270VAC
Frequency Range
50 Hz / 60 Hz ± 5 Hz (Auto Sensing)
AC Voltage Regulation (Batt. Mode)
± 5%
Frequency Range (Batt. Mode)
50 Hz or 60 Hz ± 1 Hz
Waveform (Batt. Mode)
Simulated Sine Wave
Battery Type & Number
12 V/7 Ah x 1
Typical Charging Time
6-8 hours recover to 90% capacity
Full Protection
Overload, discharge, output short circuit and overcharge protection
Battery Mode
Sounding every 10 seconds
Low Battery
Sounding every second
Overload
Sounding every 0.5 second
Fault
Continuously sounding
Operating Humidity
0~90% RH @ 0- 40°C (non-condensing)
Noise Level
Less than 40dB
Dimension, D X W X H (mm)
288 x 99 x 280
Net Weight (kgs)
6.1
Optional USB Port
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC
Model
Prime 1500
Prime 550
550 VA / 330 W
Prime 700
700 VA / 420 W
Prime 850
850 VA / 510 W
Prime 1000
1000 VA / 600 W
Prime 1200
1200 VA / 720 W
Prime 1350
1350 VA / 810 W
Prime 1500
1500 VA / 900 W
