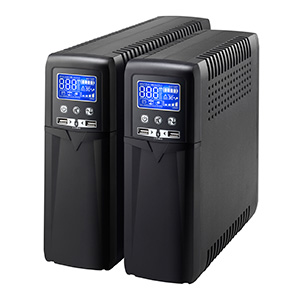

Library 600VA–2kVA Line-Interactive UPS
Quiet line-interactive UPS for home offices
Voltage
220/230 VAC
Transfer Time
Typical 4-8 ms
Every unit factory-tested: full-load aging + 40-point QC before shipping.
Full Specifications
MODEL
Library 600
CAPACITY
600 VA / 360 W
Voltage Range
140-300 VAC
Frequency Range
50 Hz
AC Voltage Regulation (Batt. Mode)
220/230 VAC ± 10%
Frequency Range (Batt. Mode)
50 Hz ± 1 Hz
Waveform (Batt. Mode)
Simulated Sine Wave
Battery Voltage
12 VDC
Floating Charge Voltage
13.7 VDC ± 2%
Maximum Charging Current
2.5A/6A/10A (Adjustable from manufacturer)
Full Protection
Overload, discharge, and overcharge protection
AC Mode
Green lighting
Battery Mode
Yellow flashing
Fault
Red lighting
Low Battery
Sounding every second
Overload
Sounding every 0.5 second
Battery Replacement
Sounding every 2 seconds
Dimension, D X W X H (mm)
358.5 x 96.8 x 146.5
Net Weight (kgs)
5.8
Operating Humidity
0~90% RH @ 0- 40°C (non-condensing)
Noise Level
Less than 40dB
Library 600
600 VA / 360 W
Library 1000
1000 VA / 600 W
Library 2000
2000 VA / 1200 W
