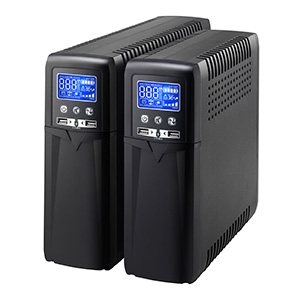

Atlas 600VA–1.5kVA Line-Interactive UPS
AVR line-interactive UPS for unstable grids
Voltage
110/120 VAC or 220/230/240 VAC
Transfer Time
6ms typical, 10ms max
Every unit factory-tested: full-load aging + 40-point QC before shipping.
Full Specifications
MODEL
Atlas 600
CAPACITY
600 VA / 360 W
Voltage Range
81～134VAC/89-145VAC or 162~268VAC/170~280VAC/177~290VAC
Frequency Range
60/50 Hz ± 5 Hz (Auto Sensing)
AC Voltage Regulation (Batt. Mode)
± 10%
Frequency Range (Batt. Mode)
50 Hz or 60 Hz ± 1 Hz
Waveform (Batt. Mode)
Pure Sine Wave
Battery Type & Number
12 V/7 Ah x 1
Typical Charging Time
4-6 hours recover to 90% capacity
Full Protection
Overload, discharge, and overcharge protection
Battery Mode
Sounding every 10 seconds
Low Battery
Sounding every second
Overload
Sounding every 0.5 second
Fault
Continuously sounding
Operating Humidity
0~90% RH @ 0- 40°C (non-condensing)
Noise Level
Less than 40dB
Dimension, D X W X H (mm)
288 x 99 x 280
Net Weight (kgs)
7.4
Optional USB Port
Supports Windows® Family, Linux, Unix, and MAC
Atlas 600
600 VA / 360 W
Atlas 800
800 VA / 480 W
Atlas 1000
1000 VA / 600 W
Atlas 1200
1200 VA / 720 W
Atlas 1500
1500 VA / 900 W
