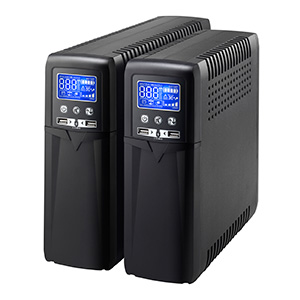

Amber 400VA–1kVA Line-Interactive UPS
Slim tower UPS with AVR for offices
Voltage
110/120 VAC or 220/230/240 VAC
Transfer Time
6ms typical, 10ms max
Every unit factory-tested: full-load aging + 40-point QC before shipping.
Full Specifications
MODEL
Amber 400
CAPACITY
400VA/240W
Voltage Range
81-134VAC / 89-145VAC or 162-268VAC / 170-280VAC / 177-290VAC
Frequency Range
50/60 Hz ± 5Hz
AC Voltage Regulation (Batt. Mode)
±10%
Frequency Range (Batt. Mode)
50/60 Hz ±1 Hz
Waveform (Batt. Mode)
Simulated Sine Wave
Battery Type & Number
12 V/4.5 Ah x 1
Typical Recharge Time
6～8 hours recover to 90% capacity
Full Protection
Overload, discharge, and overcharge protection
LCD Display
Input/output voltage, Load level, Battery capacity
LED Display
AC Mode:Green lighting; Battery Mode:Yellow flashing; Fault:Red lighting
Battery Mode
Sounding every 10 seconds
Low Battery
Sounding every sec
Overload
Sounding every 0.5sec
Fault
Continuously sounding
Humidity
0-90 % RH @ 0- 40°C (non-condensing)
Noise Level
Less than 40dB
Dimension, D X W X H (mm)
345 x 200 x 100
Net Weight (kgs)
4
Optional USB Port
Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC
Amber 400
400VA/240W
Amber 600
600VA/360W
Amber 800
800 VA / 480 W
Amber 1000
1000 VA / 600 W
