3C3HD600300–600 kVA

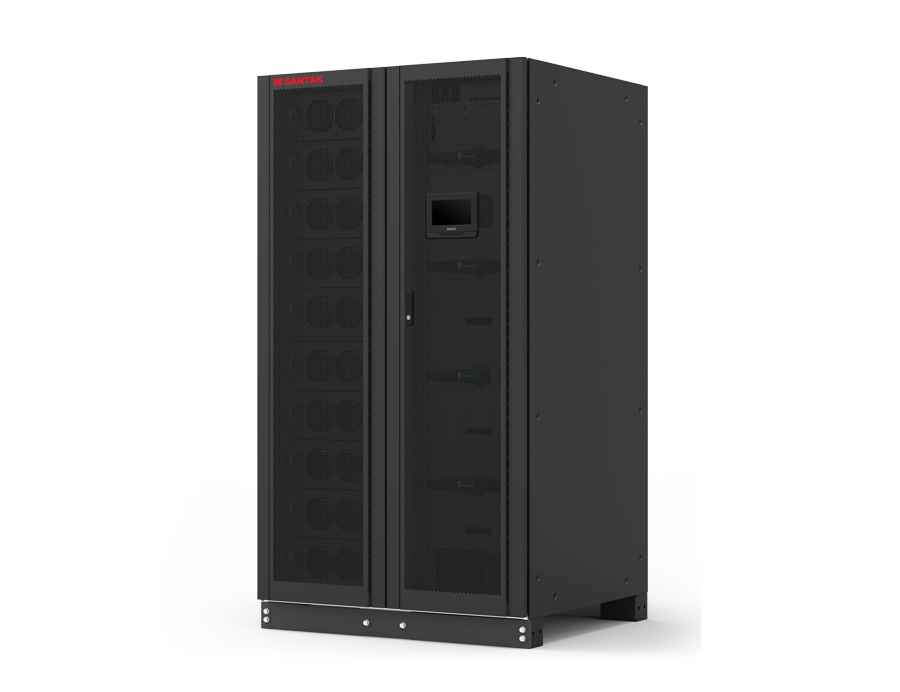

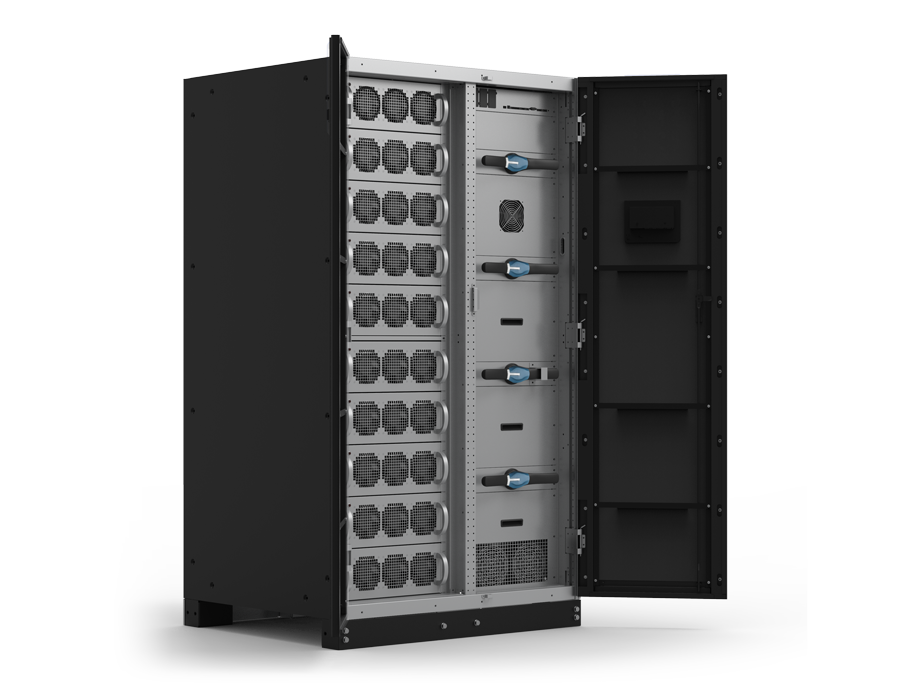

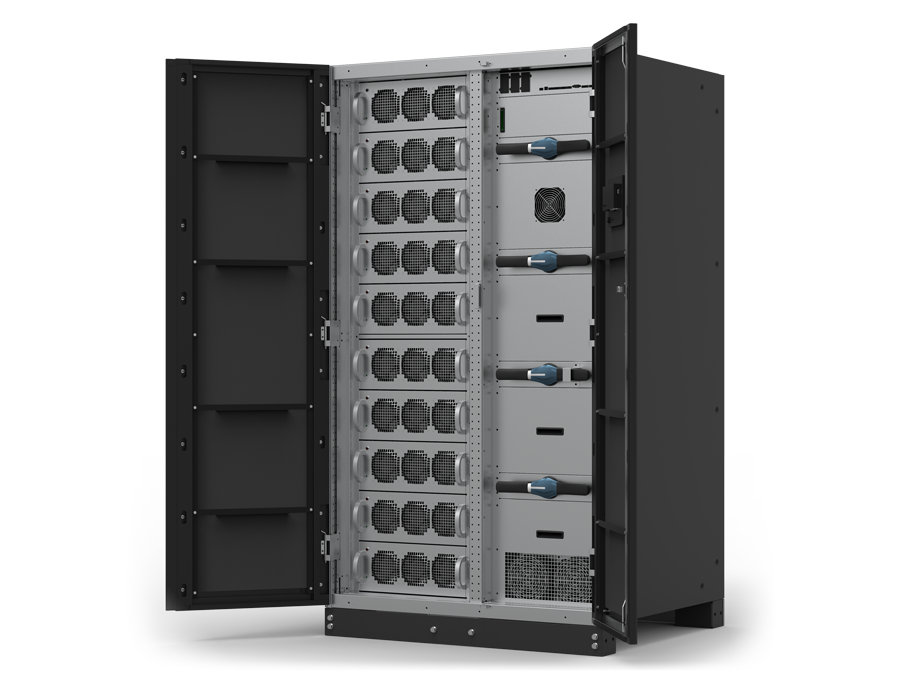

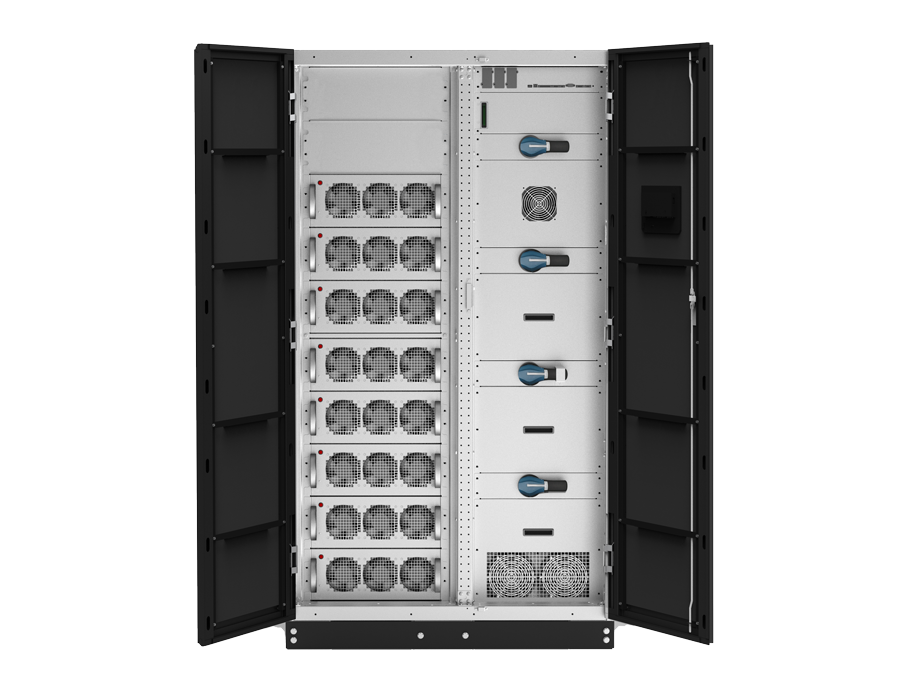

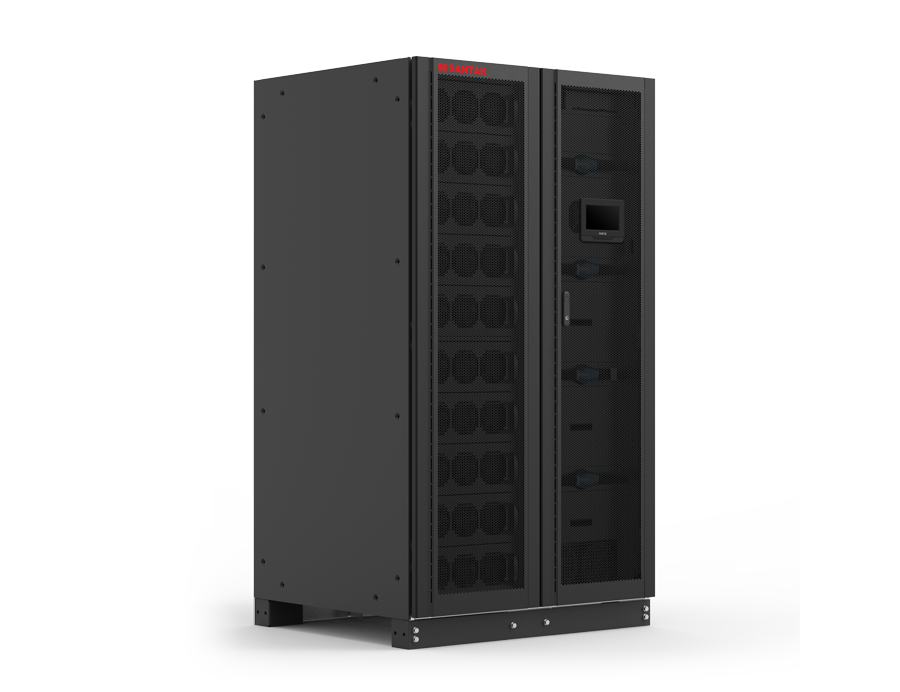

3C3 HD Series Three-Phase Online UPS (300–600 kVA)
Large-capacity three-phase online UPS for medium and large data centers — up to 97% efficiency, 4-unit parallel, VRLA / NiCd / lithium battery ready.
Power Rating
300–600 kVA
Topology
Online double conversion
Efficiency
up to 97% (online) / 99% (ESS)
Input
240–478 VAC (L-L)
Output
230/400 VAC
Parallel
up to 4 units
Backup
external battery, configurable
Full Specifications
Overview
Series
3C3 HD 400K / 500K / 600K
Power Rating
400–600 kVA at unity power factor
Topology
Online double conversion, three-level IGBT
Wiring
Three phase + Neutral + Ground
Certifications
IEC 62040
Input
Voltage Range
240–478 VAC (L-L); 138–276 VAC (L-N)
Bypass Voltage Range
340–438 VAC (L-L); 196–253 VAC (L-N)
Frequency Range
42–70 Hz
Input Power Factor
≥ 0.99
Current Distortion (THDi)
< 3% @ full linear load
Output
Nominal Voltage
230/400 VAC (220/380, 240/415 VAC optional)
Voltage Regulation
±1%
Voltage Distortion (THDv)
< 1% @ full linear load
Output Power Factor
1.0
Overload Capability
10 min @ 111–125%; 1 min @ 126–150%
Parallel Capability
Up to 4 units
Efficiency (Double Conversion)
Up to 97%
Efficiency (ESS Mode)
Up to 99%
Battery
Battery Type
VRLA, NiCd or lithium battery
Battery Voltage
480 V (40 pcs) to 690 V (50 pcs), default 480 V
Max Charge Current
280 / 320 / 400 A by model
Physical
Dimensions (W×D×H)
1100×1000×2000 mm
Net Weight
650 / 700 / 820 kg
Display
Touch-screen LCD with status and event log
Environment
Operating Temperature
0–40 °C
Storage Temperature
–15 to +55 °C
Humidity
5–95%
Altitude
No derating below 1000 m
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
