3C3HD20–200 kVA

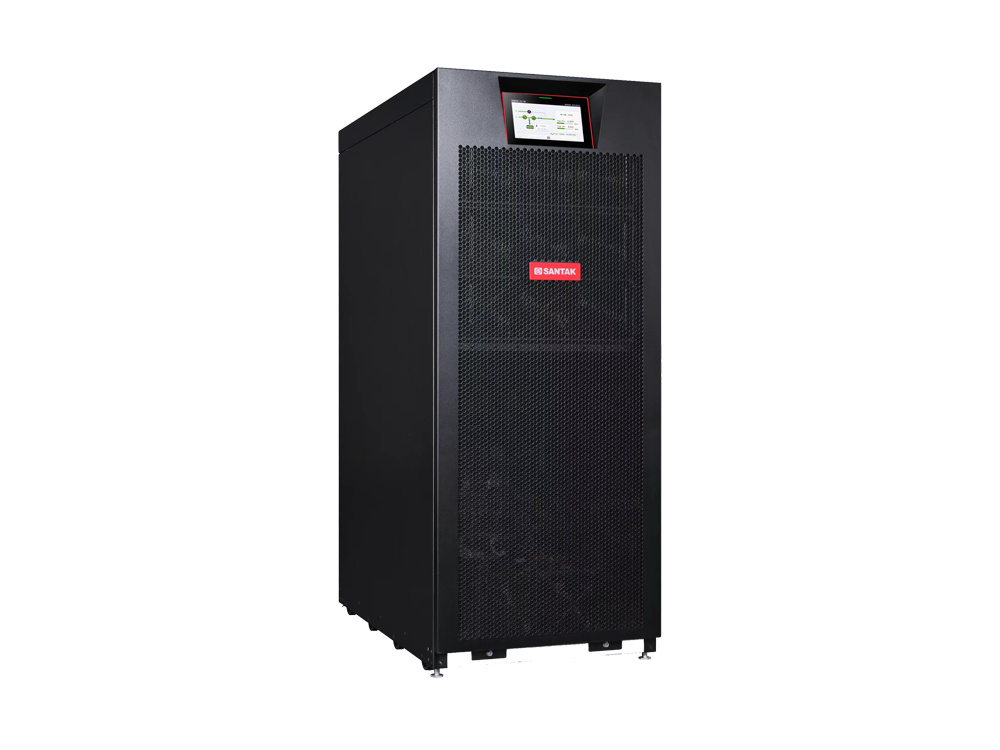

3C3 HD Series Three-Phase Online UPS (20–200 kVA)
High-density three-phase online UPS for small and medium data centers — up to 96% online efficiency, unity output power factor, 4-unit parallel.
Power Rating
20–200 kVA
Topology
Online double conversion
Efficiency
up to 96% (online) / 99% (ECO)
Input
201–478 VAC (L-L)
Output
230/400 VAC (220/380, 240/415 opt.)
Parallel
up to 4 units
Backup
external battery, configurable
Full Specifications
Overview
Series
3C3 HD 20K to 3C3 HD 200K
Power Rating
20–200 kVA at unity power factor (20–200 kW)
Topology
Online double conversion, three-level IGBT
Wiring
Three phase + Neutral + Ground
Certifications
IEC 62040
Input
Mains Voltage Range
201–478 VAC (L-L); 116–276 VAC (L-N)
Bypass Voltage Range
338–458 VAC (L-L); 195–264 VAC (L-N)
Frequency Range
42–70 Hz
Input Power Factor
≥ 0.99
Current Distortion (THDi)
< 2% linear load; < 5% non-linear load
Output
Nominal Voltage
230/400 VAC default (220/380, 240/415 VAC optional)
Voltage Regulation
< 1% @ steady state
Output Power Factor
1.0
Overload Capability
60 min @ 102–110%; 10 min @ 111–125%; 1 min @ 126–150%
Parallel Capability
Up to 4 units
Efficiency (Online Mode)
Up to 96%
Efficiency (ECO Mode)
Up to 99%
Battery
Battery Voltage
320–607 VDC (432 VDC default)
Max Charge Current
25–200 A by model
Battery Type
VRLA (external battery cabinet)
Physical
Dimensions (W×D×H)
330×668×521 mm (20–40 kVA) to 550×850×1600 mm (160–200 kVA)
Net Weight
41–270 kg by model
Display
Touch-screen LCD with status and event log
Environment
Operating Temperature
0–40 °C
Storage Temperature
–15 to +55 °C
Humidity
5–95%
Altitude
No derating below 1000 m
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
